Article 3.VMS.01.TS100 and 3.VMS.02.TS100

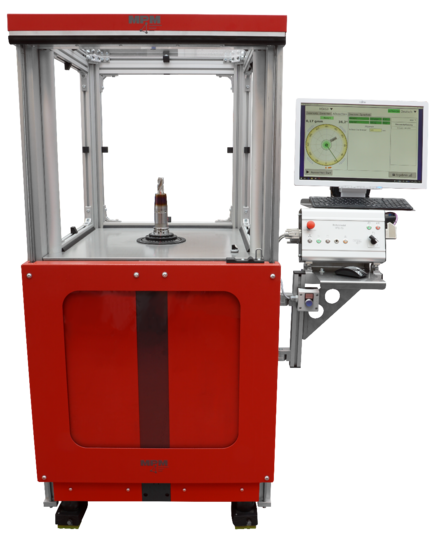

VMS balancing machine

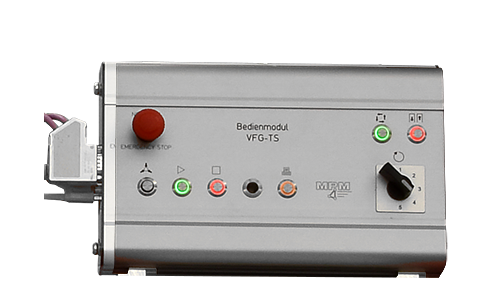

VMS operating module

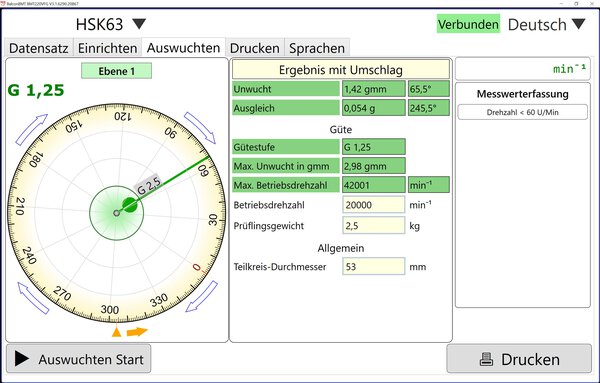

BalconBMT Software

Vertical balancing machine

for serial parts in 1 plane or 1 + 2 planes

  • Machine construction in stone and aluminium construction profile
  • Quickstart operating module for customer PC connection (Windows10)
  • CAN USB adapter and data cable
  • Balancing software with 7 balancing methods
  • Protocol and label printing
  • 360° scale ring plus line laser
  • 1.5 kW drive motor with frequency converter
  • Vertical sliding door, automatic opening / closing, incl. safety bar
  • Transparent protective hood with safety interlock
  • Rotor weight up to approx. 50 kg
  • Rotor-Ø up to approx. 720 mm
  • Unbalance reduction ratio > 95%.

Catalog-# / Description

Catalog-# Order-# Description
3.VMS.01.TS100 1050365A Balancing machine for 1 plane
3.VMS.02.TS100 1050366A Balancing station for 1 + 2 planes

Technical details

Technical data 3.VMS.01.TS100
Machine designation: VMS
Machine type: 3.VMS.01.TS100
Balancing planes: 1-plane
Power supply: 230 V
Frequency: 50 Hz
Recommended fuse protection: 16 A
Power input: max. 6 kVA
Mass: 850 kg
Air pressure: min. 6,5 bar; max. 8 bar
Speed range: 200 to 2500 1/min
Machine dimensions (without protection and service area): 1017 mm / 781 mm / 1833 mm L / W /H
Electromagnetic compatibility: In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector
Control: 3.BM.VFG.TS
Interfaces: 2x RS232
Technical data 3.VMS.02.TS100
Machine designation: VMS
Machine type: 3.VMS.01.TS100
Balancing planes: 1+2-planes
Power supply: 230 V
Frequency: 50 Hz
Recommended fuse protection: 16 A
Power input: max. 6 kVA
Mass: 850 kg
Air pressure: min. 6,5 bar; max. 8 bar
Speed range: 200 to 2500 1/min
Machine dimensions (without protection and service area): 1017 mm / 781 mm / 1833 mm L / W /H
Electromagnetic compatibility: In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector
Control: 3.BM.VFG.TS
Interfaces: 2x RS232

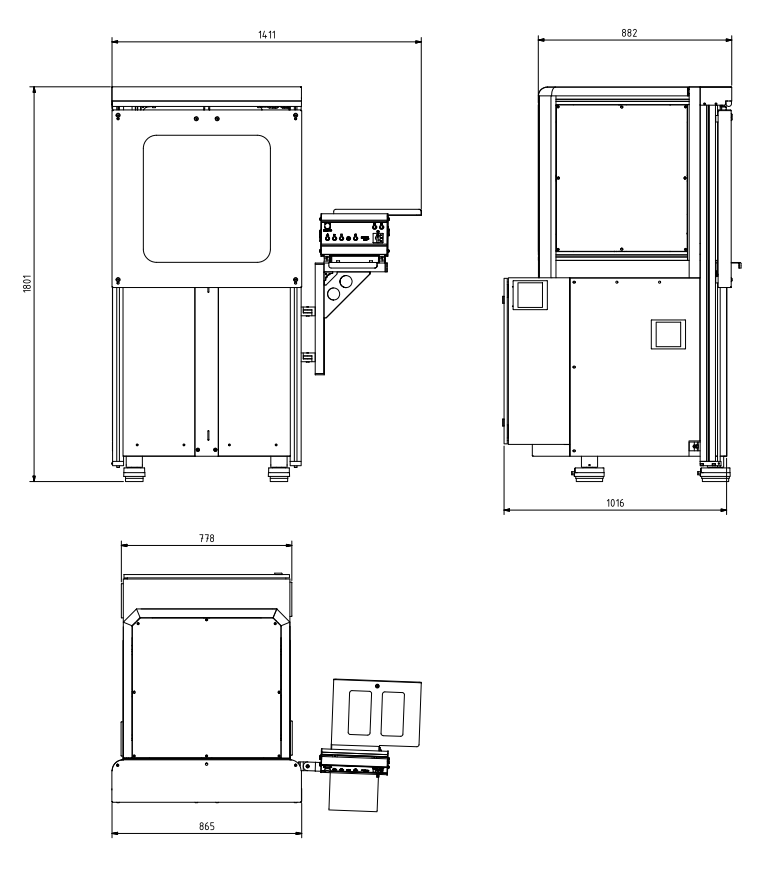

Dimensional drawings

AccessoryDescription Article
Clamping adapter SK/BT 3.A.SK/BTxxto product
Clamping adapter HSK 3.A.HSKxxto product
Clamping adapter for polygon-cone shaft 3.A.P.PSCxxto product
Clamping adapter for collets 3.A.SZto product
Clamping adapter for expansion sleeves 3.A.SHto product
CAN-USB Adapter 3.CAN.USB.TSto product
Data cable, 9-pin 3.DKC.B09to product
Precision pocket scales 3.CMto product
Grub screw set M6, especially for tool holders 3.0.WGS07to product
Grub screw sets 3.0.WGSto product
Vibration sensor for balancing machine 3.VMS / 3.ABZ 3.PU.M1.4.00,3.oM-AMAto product
Line laser 3.LP.06to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
